Meticulously engineered by industry professionals for broadcasters, streamers, educators, and creators who demand uncompromising performance.
Unmatched Clarity
Featuring advanced image processing and a Sony 4/3” 5K CMOS sensor, VENTIX minimizes noise in highlights and shadows to deliver exceptionally clear, detailed image reproduction in any lighting condition.
Rich Interface Configuration
Supports simultaneous output via HDMI 2.0, 12G-SDI, 3G-SDI, NDI HX3, DANTE AV-H, and USB (UVC). Includes XLR (48V+) and Line inputs, Genlock, Timecode, and optional SFP+ for flexible professional workflows.
AI Tracking and Framing
With proprietary AI algorithms for ReID and FaceID, VENTIX enables subject tracking based on shape, posture, and clothing, combined with face recognition and phase-detection autofocus (PDAF) for precise focus.
Compatible with the freeD protocol, sending precise camera tracking information (pan/pitch/zoom/focus/iris) to 3D production software, perfectly integrating characters in 3D virtual backgrounds.
Two front and one rear tally light offer three brightness levels and Tally can be disabled. Power status and tracking LEDs are also user-controllable via the graphical interface.
VLAN tagging enables separation of video, audio, and control traffic. Perfect for NDI and Dante, it improves reliability, reduces latency, and simplifies complex AV-over-IP systems.
Internal microSD recording supports ISO capture up to 4K60, enabling high-quality backup or standalone recording—ideal for redundancy, mobile setups, or post-production.
Featuring a 20x F2.8–F4.5 telephoto lens with PDAF and a 3-level ND filter, VENTIX reaches an impressive 186.5mm focal length—delivering long-range precision with stunning clarity.
Lens Distortion Correction (LDC) is a digital image processing technique used for rectifying the distortions introduced by the inherent optical properties of camera lenses.
Equipped with EIS, the real-time algorithm minimizes blur and vibration from pan/tilt or environmental motion, ensuring smooth, stable video during fast repositioning or zooming.
High-torque precision motors with dual-layer transmission deliver a wide speed range—0.1°–80°/s pan and 0.1°–60°/s tilt—for both ultra-smooth slow moves and rapid transitions.
Motion Sync ensures coordinated pan, tilt, and zoom movement for smooth, natural preset transitions. The camera adjusts all axes simultaneously, avoiding abrupt shifts and maintaining stable, professional framing.

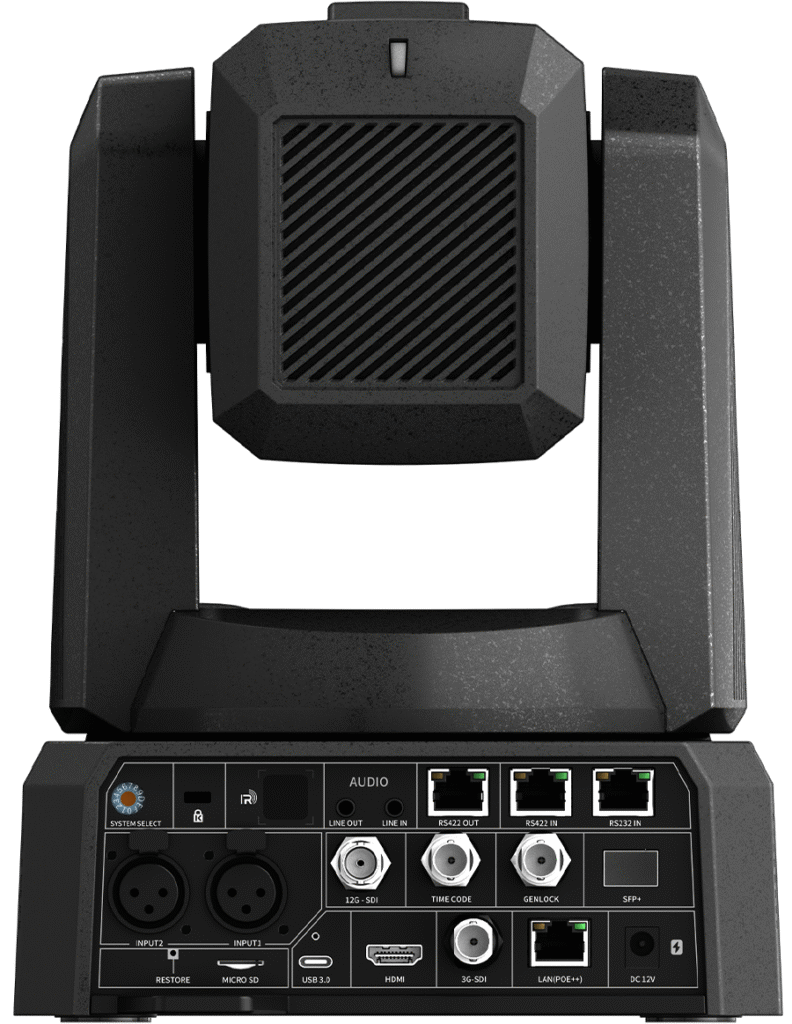

1. Resolution Rotary Switch
The Resolution Rotary Switch lets you quickly set the video output resolution (e.g. 2160p60, 1080p60 etc) by turning a dial, ensuring compatibility with different video systems.
2. Kensingtong Security Lock
The Kensington Security Lock is a physical anti-theft system that allows you to secure your device to a fixed object using a compatible lock and cable.
3. IR Window
The IR window is a transparent panel that allows infrared signals from a remote control to reach the camera’s IR sensor, enabling wireless control.
4. 3.5mm Line Input/Output
The 3.5mm Line Input/Output allows audio signals to be sent to (input) or from (output) the camera, enabling integration with external microphones, mixers, or speakers.
5. RS422 Output
RS422 Output is a serial control interface used to send precise camera control signals (like pan, tilt, zoom) over long distances with high reliability.
6. RS422 Input
RS422 Input receives serial control signals from a controller or switcher, allowing remote operation of all functions such as pan, tilt, zoom, and presets.
7. RS232 Input
RS232 Input receives camera control commands from a local controller or computer, enabling basic functions such as pan, tilt, zoom, and preset recall over shorter distances.
8. XLR 48V / Line Input 1 + 2
XLR 48V / Line Input 1 allows connection of professional microphones or line-level audio sources; balanced with 48V phantom power support for high-quality sound integration.
9. Restore Factory Setting
Restore Factory Setting resets the device to its original default configuration, erasing all custom settings—useful for troubleshooting or preparing the device for a new setup.
10. Micro SD Card
The microSD card slot allows the camera to record video locally onto a memory card, enabling standalone/ISO recording
without needing an external recorder or network connection.
11. USB C 3.0
USB-C 3.0 is a high-speed USB connection with UVC1.1 support, enabling uncompressed video and plug-and-play webcam functionality without extra drivers.
12. 12G SDI Output
12G SDI Output transmits high-quality 4K according to SMPTE 2082-1, supporting ultra-high-definition signals with low latency for professional broadcast and production.
13. HDMI 2.0b
HDMI 2.0b with Auto EDID automatically detects and communicates the best compatible video/audio settings between the
camera and display, ensuring optimal output without manual configuration.
14. 3G SDI Output
3G SDI Output transmits high-definition video based on SMPTE 424M, a standard widely used for reliable, low-latency
connections in professional broadcast environments.
15. Ethernet RJ45 PoE++
Network powered (PoE++) ethernet connection for camera control via VISCA. Transmits high-quality, low-latency Dante AV-H as well as NDI HX3 for efficient AV integration and control.
16. 12V DC Power Input
12V DC Power Input supplies the camera with stable direct current power from an external adapter or power source to operate reliably and power redundancy.
17. Ref / Genlock
Ref / Genlock input syncs the camera’s video signal to an external timing source, ensuring all cameras stay perfectly in sync for seamless multi-camera production.
18. SFP+ Video Output
SFP+ Fiber connection transmits high-bandwidth, low-latency SDI video signals via fiber optic cables, enabling long-distance, interference-free connections in professional broadcast systems.
19. Timecode Input
Timecode Input receives timing signals to synchronize video and audio recordings across multiple devices, ensuring accurate,
frame-precise alignment in multi-camera productions.
20. Safety Loop
Integrated safety loop on the base plate for secure attachment of a safety wire, preventing accidental falls and ensuring reliable
camera protection.
21. Tally Lights
Rear and Front Tally Lights indicates when the camera is live or in preview during use,
helping operators and talent know which camera is active.
22. Head
Head – the camera module with the lens and image sensor, responsible for TILT movement.
23. Yoke
Yoke – the moving arm that supports the head and enables PAN movement.
24. Base
Base – the lower section that houses the main electronics, connection interface, power supply and PAN motor
3. IR Window
The IR window is a transparent panel that allows infrared signals from a remote control to reach the camera’s IR sensor, enabling wireless control.
At Panoratic, we believe creators should never compromise on clarity, speed, or control. That’s why we’ve engineered the Panoratic VENTIX – a 4K PTZ Broadcast Camera to
deliver broadcast-level performance with pinpoint accuracy and effortless operation.
With ultra-high resolution, smart AI tracking with FaceID, and support for protocols like NDI®, DANTE®, SRT, and FreeD, our flagship camera empowers professionals to capture complex productions with confidence — from live shows to hybrid classrooms and immersive virtual sets.
Experience unmatched flexibility with VENTIX, built to empower your creative vision. Featuring cutting-edge technologies like NDI®, Dante®, HDbaseT™, SRT® and a wide range of connections we are sure to meet any requirement possible today as well as in the future.
Equipped with front and rear tally lights, built-in ND filters, and the largest sensor ever in a PTZ camera with an integrated lens, VENTIX delivers exceptional image quality in any environment. Designed for creators, broadcasters, and professionals who demand performance without
compromise.
Every feature in the Panoratic VENTIX is built to elevate your production value. Whether you’re switching live or recording for post, our camera will easily adapt to any challenge you may encounter.
Powered via PoE++. Controls over IP or serial, reliable high-torque low speed motors for ultra-smooth motion in any environment — no matter how demanding the shoot.
From HDMI and 3G/12G-SDI to NDI®|HX3, Dante® AV-H, and SFP+, the Panoratic VENTIX fits reliably into any AV workflow in any envirement with ease.
Built-in EIS, lens distortion correction, ND filters as well as motion sync, advanced AI tracking and FaceID. All features to make re-positioning and professional framing swift and on point at all times.
Premium materials, advanced thermal regulation, a heavy duty baseplate equiped with a proper safety loop and mounting points featuring 2x ¼-20 threads. Mount on walls or ceiling or on a stand.
Fill out the form below and we will get back to you as soon as possible with a quote based on your selections.
| Camera Specifications in Detail | |
|---|---|
| Video System | HDMI/12G-SDI:4KP60,4KP59.94,4KP50,4KP30,4KP29.97,4KP25,4KP24,4KP23.98,
1080P60,1080P59.94,1080P50,1080P30,1080P29.97,1080P25,1080P24,1080P23.98,
1080I60,1080I50,1080I59.94, 720P60,720P59.94 3G-SDI:1080P60,1080P59.94,1080P50,1080P30,1080P29.97,1080P25,1080P24,1080P23.98, 1080I60,1080I50,1080I59.94, 720P60,720P59.94 |
| Sensor | 4/3-inch, Sony CMOS sensor with a maximum of 20,89MP |
| Scanning Mode | Progressive scanning |
| Lens | 20x, f9.79mm ~ 186.5mm, F2.8 ~ F4.5 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5Lux @ (F2.8, AGC ON) |
| Shutter | 1/24s ~ 1/2000s |
| ND filter | Built in(OFF、1/4、 1/16、1/64) |
| Anti-shake | EIS |
| White Balance | Automatic, indoor, outdoor, one touch, manual, |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 3D digital noise reduction |
| Video S/N | ≥55dB |
| Horizontal Angle of View | 71° ~4.05° |
| Vertical Angle of View | 39.6° ~ 2.2° |
| Horizontal Rotation Range | ±172° |
| Vertical Rotation Range | -30° ~ +120° |
| Pan Speed Range | 0.1°~80°/S |
| Tilt Speed Range | 0.1°~60°/S |
| H & V Flip | Supported |
| Image Freeze | Supported |
| PoE | Supported |
| Number of Preset | 255 |
| Preset Position Accuracy | 0.1° |
| USB Featured | |
|---|---|
| Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color System / Compression | YUY2 / H.264 / MJPEG /H.265 |
| Video Format | YUY2 :Max 1440P30 H.264 AVC: Max 2160P60 H.265 HEVC: Max 2160P60 MJPEG:Max 2160P60 |
| USB audio | Supported |
| USB Video Communication Protocol | UVC 1.1 |
| UVC PTZ control | Supported |
| Network Features | |
|---|---|
| Video Compression | H.265/H.264/MJPEG |
| Video Stream | First streaming, second streaming |
| Main Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576 etc |
| Sub Stream Resolution | 720x576, 720x480, 320x240 etc |
| Video Bit Rate | 32kbps~81920kbps |
| Bit Rate Type | Variable bit rate，Fixed bit rate |
| Frame Rate | P50: 1fps~50fps, P60:1fps~60fps |
| Audio Compression | AAC、G711A |
| Audio Bit Rate | 96Kbps,128Kbps |
| Support protocols | NDI®|HX3, Dante AV-H, FreeD, SRT, TCP/IP, HTTP(S), RTSP, RTMP(S) ,Onvif ,DHCP ,GB/T 28181 |
| Input/Output Interface | |
|---|---|
| HD Output | 1x HDMI: 2.0 1x 12G-SDI: BNC type, 800mVp-p, 75Ω, follow the SMPTE 2082-1 standard 1x 3G-SDI: BNC Type, 800mVp-p, 75Ω, follow SMPTE 424M standard |
| Genlock Input Interface | 1x BNC type，75Ω |
| TC Input Interface | 1x BNC type，75Ω |
| Network Interface | 1x RJ45: 10M/100M/1000M Adaptive Ethernet V-Lan tagging |
| Audio Interface | 1x Line In, 3.5mm audio interface 1x Line Out, 3.5mm audio interface 2x Balanced input, XLR interface 2x Mic input (Left + Right) |
| USB interface | 1x USB3.0, Type-C type |
| Communication Interface | 1x RS232 In: RJ45, VISCA/Pelco-D/Pelco-P type 1x RS485/422 in: RJ45, VISCA/Pelco-D/Pelco-P type 1x RS422 out: RJ45, VISCA/Pelco-D/Pelco-P type |
| SD card | 1x Micro SD UHS-II v60 / v90 |
| RESTORE button | Supported |
| Power Jack | JEITA type（DC IN 12V） |
| Optional interface | 1xRJ45：NDI HX3 1xRJ45：Dante AV Ultra 1xSFP+：12G SDI |
| Generic Specification | |
|---|---|
| Installation direction | Wall Mounting, Ceiling Mounting |
| TALLY | 3pcs（red and green color） |
| Power Indicator | 1pcs（Blue color） |
| Status Indicator | 2pcs（Green color、red color） |
| IR remote control input | Supported, IR front and rear |
| Input Voltage | DC 12V / POE ++ |
| Input Current | 5A（Max） |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Size | 205mmx237mmx272mm |
| Net Weight | 4.8KG |
